Random Forests Doesn’t (Does) Overfit

Attachments: easily_separable.txt | overfit.txt



Sections



Introduction

Overfitting is a machine learning term that is full of rarely discussed nuances and depth.

Here, I will attempt to discuss overfitting with regard to random forest models. This article is inspired by the supposedly common saying that “random forest doesn’t overfit”, which was mentioned by the creator, Leo Breiman, on his website. This is his exact quote:


\[ \textit{Random forests does not overfit. You can run as many trees as you want.} \]

We will go through several scenarios demonstrating how random forest does and does not overfit with increasing model complexity. Note that we are not contradicting Leo Breiman. He is technically correct, but there are nuances to be aware of.

The discussion here will require a good understanding of what the terms “bias” and “variance” mean for machine learning models.



Definition of Overfitting

As far as I know, there isn’t a rigorous mathematical definition of overfitting. It is, in fact, extremely difficult to rigorously define overfitting, despite people feeling that it should be intuitive. The Wikipedia entry uses this definition taken from the Oxford Dictionary of English:

The production of an analysis which corresponds too closely or exactly to a particular set of data, and may therefore fail to fit additional data or predict future observations reliably.

For the purpose of this article, the intuitive explanation of overfitting that I will be using is this common observation:

The model has lower training set error than test set error. That is, the model is very well fitted to the training dataset but this performance does not generalize to the test dataset.

Note that just having zero, or close to zero, error for the training set is not a sign of overfitting. For example, the double descent phenomenon is the observation that large complex machine learning models can achieve zero, or close to zero, error on training data, while still achieving similarly low errors for test datasets. There is also always the case of perfect separation, which will be illustrated below.

An in-depth mathematical discussion of overfitting can be found in chapter 7 of the very well-known and free textbook The Elements of Statistical Learning, second edition.



The Random Forests Model

Leo Breiman’s Random Forest paper is very famous and has a whopping 110,485 citations at the time of writing. The main idea is to use a forest of multiple decision trees to form the output of the model via majority voting.

There are two key elements:

These two elements come together to produce decision trees that are hopefully uncorrelated. A forest of identical trees would be rather pointless!



Binary Classification With Synthetic Data

I will focus on binary classification for this article. Two-dimensional data points are generated from two normal distributions. Data points from one distribution is labeled with a “1” and the other with a “0”. The goal here is to build a random forest model to correctly label new unseen data points as “1” or “0”.


 1import numpy as np
 2
 3mean1 = [0, 0]
 4cov1 = [[1, 0], [0, 1]]
 5
 6mean2 = [6, 6]
 7cov2 = [[2, 0], [0, 2]]
 8
 9gen = np.random.default_rng(seed = 0)
10x, y = gen.multivariate_normal(mean1, cov1, 1000).T
11a, b = gen.multivariate_normal(mean2, cov2, 1000).T


No Overfitting When Easily Separable

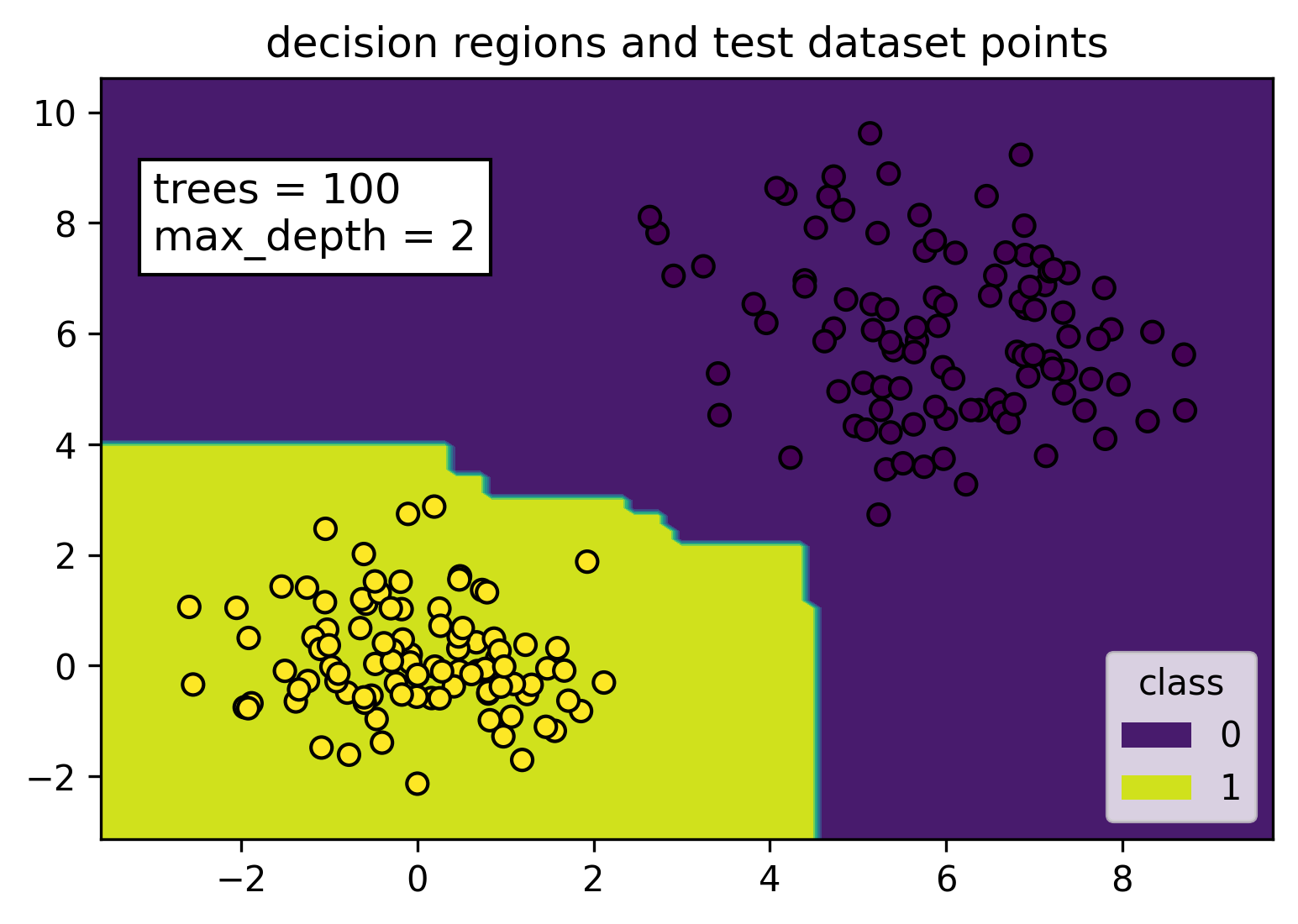

This is an easy case, but worth mentioning due to the very common assumption that close to zero training error must mean overfitting. The figure below illustrates perfectly separable labels using two normal distributions to generate data points that are relatively far apart.



We can see from the figure that when the data is easily separable, the random forest model is going to have close to zero or zero error on the training set, but the resulting separator will not be overfitted. The yellow and purple decision regions were constructed with the training dataset. All the yellow points (class label = 1) from the test dataset fall nicely in the yellow decision region, while all the purple points (class label = 0) fall within the purple decision region.

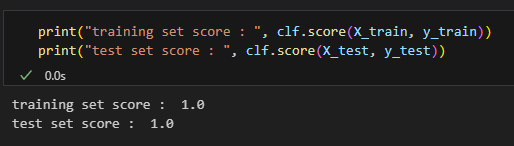

Sklearn’s random forest classifier has a score method, which I use to show that the training and test set mean accuracy for this case are both equal to 1. Python code to reproduce my results for this section can be found in the easily_separable.txt file in the attachment section at the top of this article.



No Overfitting With More Trees

Next, we examine the infamous phrase “random forest doesn’t overfit”. Indeed, random forest doesn’t overfit when the number of trees is increased. This is actually fairly straightforward to explain, following the approach of the textbook The Elements of Statistical Learning. I am using slightly different notation here. Please refer to 2nd edition, Chapter 15.2 on page 589, and Chapter 15.3.4 on page 596, if you wish to see the textbook’s version.

Let \( B \) be the number of trees in the model and \( T_b(x) \) be the output of the \( b \)-th tree on input x. Then the random forest model is


\[ \frac{1}{B} \sum^{B}_{b = 1} T_b(x). \]

Recall that “variance” in machine learning models refers to how close the model is from the average or expected model produced over all possible training sets of the same size. The expected model for the random forest algorithm is, in fact


\[ \lim_{B \to \infty} \frac{1}{B} \sum^{B}_{b = 1} T_b(x). \]

So, we can get arbitrarily close to the expected model by increasing the number of trees \( B \). This is why variance will decrease as the number of trees are increased.



Overfitting When Increasing Depth

Finally, we look at when random forests can actually overfit. Of course, the data must not be easily separable.

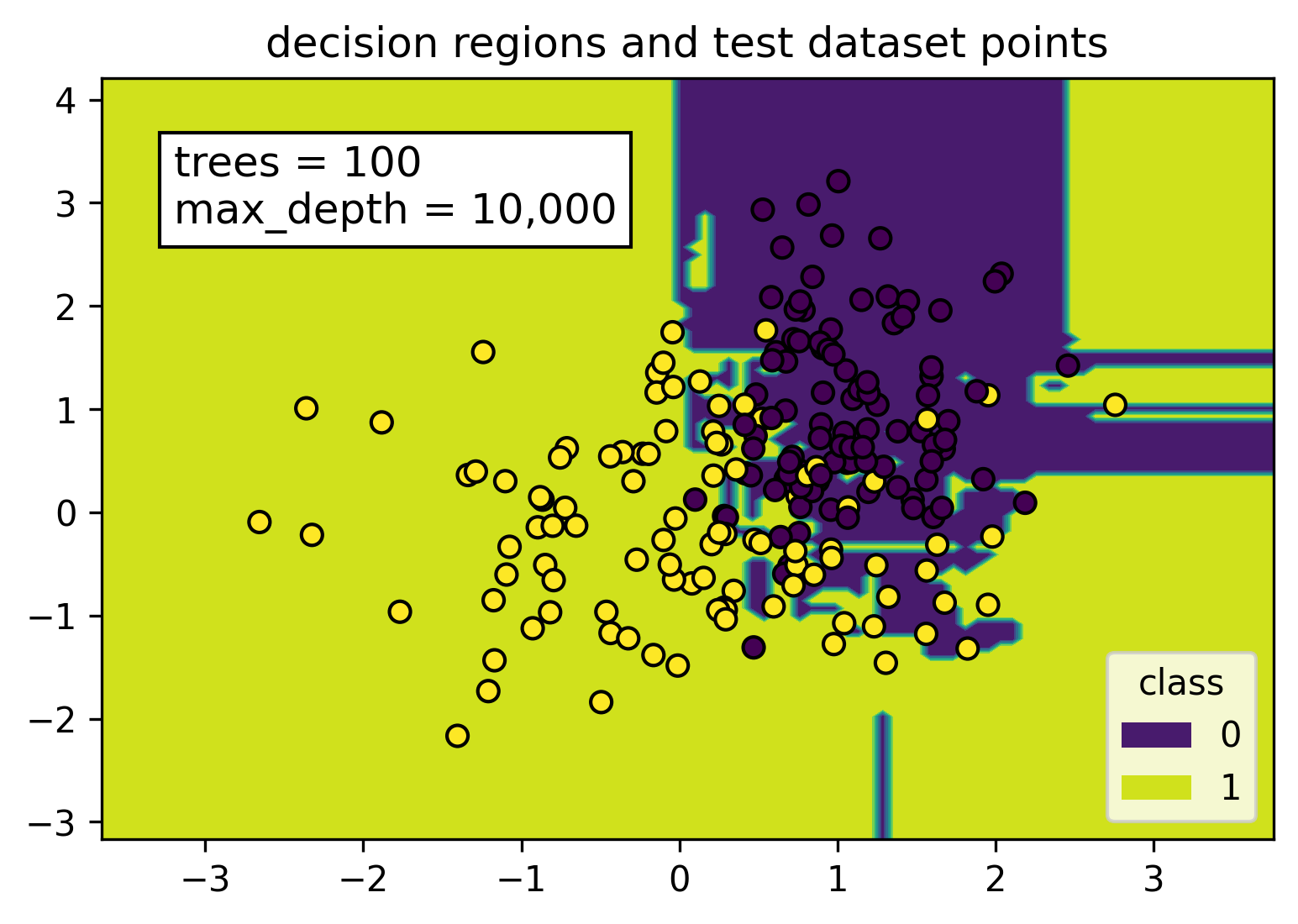

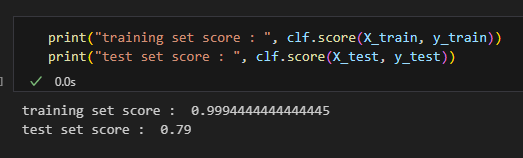

By setting the max depth parameter to 10,000, each tree in the random forest model will keep splitting until each node is pure. As seen in the figure, this caused the decision region to be split up into tiny, irregular chunks. These tiny pieces are tailor-made for points in the training set, but there is really no reason why they would help classify points from the test dataset.

Hastie’s textbook also talks about this but still recommends fully grown trees. These are trees that have unbounded depth and are grown until each leaf node contains only a single data point. The rationale quoted from the textbook is that “using full-grown trees seldom costs much, and results in one less tuning parameter”.

Resolving the Overfit

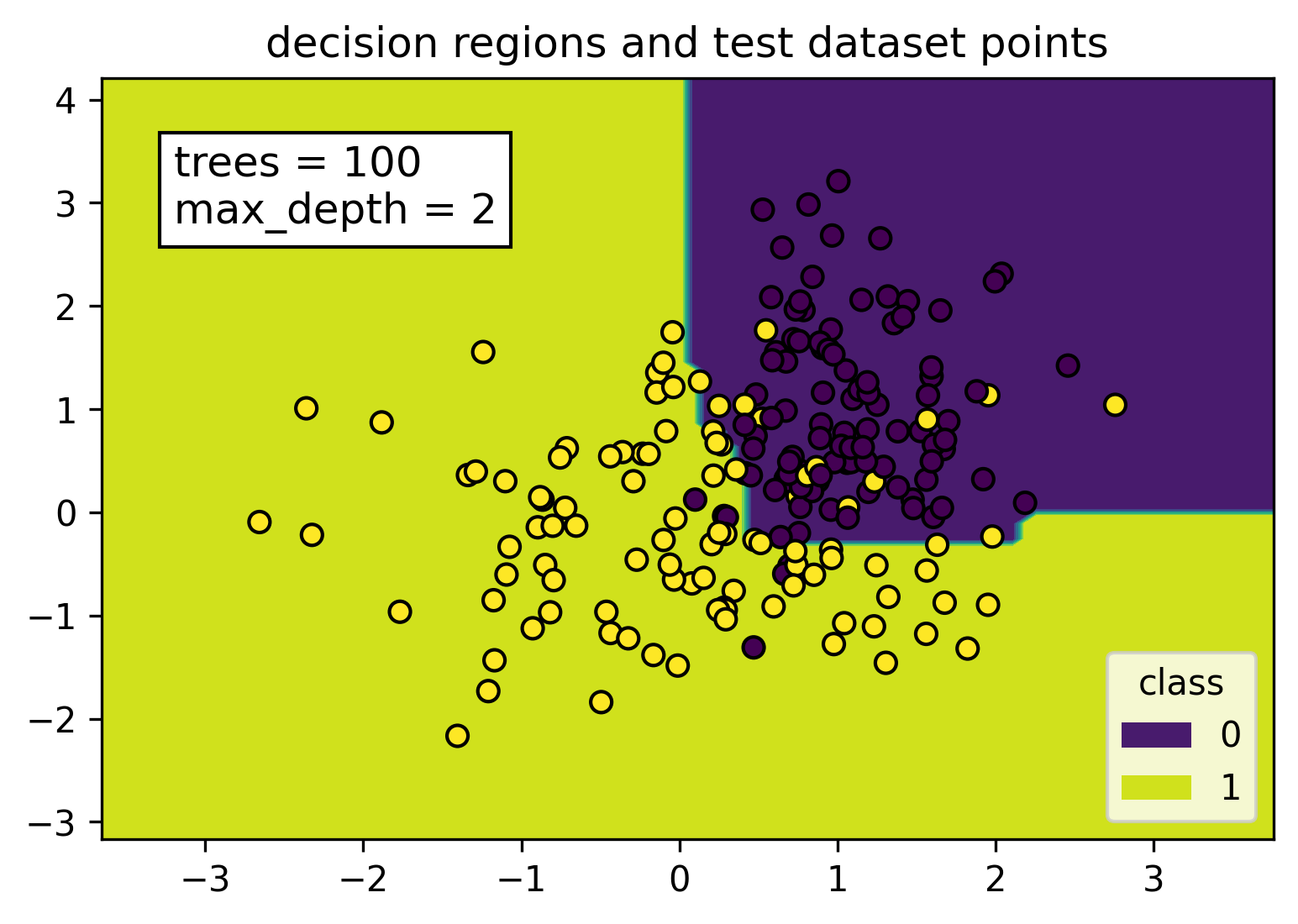

Reducing the max depth parameter to 2 results in a smooth separator dividing the decision region into two, instead of disjoint jagged pieces that we have seen before.

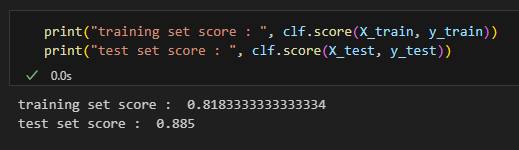

The mean accuracy on the training set decreased but increased for the test set. Like we expected, reducing the max depth parameter from 10,000 to 2 fixed the overfitting problem and made the resulting model more generalizable. By random chance, the test set actually has a higher score.



The python code to reproduce this section can be found in the overfit.txt file in the attachment section at the top of this article.
